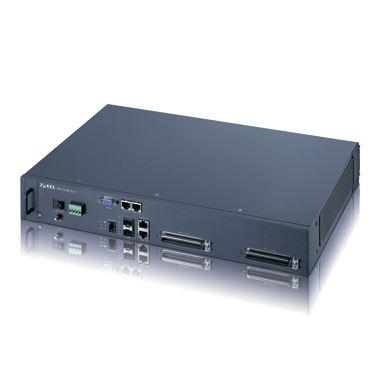

IES-1248-51V

Remote-MSAN für ADSL- und VoIP-Dienste mit 48 Ports

Bereitstellung von Triple-Play-Diensten mit hohen Bandbreiten für Teilnehmer

Temperaturbeständiges Design und benutzerfreundliche Remote-Installation

Der ZyXEL IES-1248-51V ist für Betriebstemperaturen von -40° C bis 65° C ausgelegt. Damit werden verschiedene Umgebungsbedingungen für Fiber-to-the-Node und Fiber-to-the-Curb weltweit erfüllt. Eine entnehmbare Filterkassette, die gereinigt und wiederverwendet werden kann, sorgt für ein staubgeschütztes Design und macht ihn für den Einsatz im Freien geeignet.

Darüber hinaus wird die Drehgeschwindigkeit des Lüftermoduls automatisch je nach Systemtemperatur angepasst. Dadurch wird nicht nur die Lebensdauer des Moduls erhöht, sondern der Geräuschpegel gesenkt, was beim Einsatz des IES-1248-51V in einem Wohnviertel wichtig ist. Das Lüftermodul lässt sich im laufenden Betrieb austauschen. Damit werden die Wartungskosten im Einsatz gesenkt.

mehr Details im Überblick

Komplette ADSL2+ Dienste

Die Teilnehmer erhalten mit dem IES-1248-51V ADSL2+ Konnektivität nach dem neuesten Stand der Technik. Die aktuellsten Technologien wie verschiedene Fähigkeiten für Leitungscodierung, Power Spectral Mask Fitting, Dual Latency Path Selection, Loop Diagnostic und Energie-Management, Seamless Rate Adaptation (SRA) sowie Impulse Noise Protection (INP) werden alle unterstützt. Durch bis zu 24 Mbit/s (im Downstream) und 2,3 Mbit/s (im Upstream) pro Port werden bandbreitenintensive Dienste wie Streaming Video, Online-Spiele und IP TV auf einfache Weise verfügbar. Auch ADSL2+ Port-Bonding steht Teilnehmern zur Verfügung, die noch mehr Bandbreite benötigen oder bei denen die Loop-Länge mehr als 1500 m beträgt.

Integriertes VoIP Media Gateway

In den IES-1248-51V ist ein POTS-Splitter eingebaut. Er kann als Media Gateway eines paketbasierten Sprachnetzwerks fungieren. Durch die Kommunikation mit dem Softswitch oder Media Gateway Controller digitalisiert und verkapselt der IES-1248-51V die POTS-Sprachdaten in VoIP-Pakete und liefert sie an das IP-Netzwerk mit höherer Priorität in SIP- oder H.248 Signalprotokollen. Telekommunikationsanbieter sind damit in der Lage, den OAM&P-Aufwand beizubehalten und Voice-over-broadband (VoBB) Dienste anzubieten, ohne das Netzwerk auf Kundenseite ändern zu müssen.

Hochentwickelte Funktionen für Triple-Play-Dienste

Der IES-1248-51V ist mit umfassenden ATM- und Ethernet-QoS-, sowie verschiedenen IP-QoS-Features ausgerüstet (Paket-Klassifizierung/?bertragungsratenbegrenzung/Queue Scheduling). Das nahtlose QoS-Mapping ermöglicht nicht nur ein konsistentes sowie adäquates Handling von Datenpaketen, sondern auch die Erfüllung von Anforderungen durch Triple-Play-Dienste.

Es werden 512 Multicast-Gruppen mit jeweils 50 Mitgliedern unterstützt. In einer Sekunde können mindestens 30 Multicast IGMP Join-/Leave-Requests verarbeitet werden und die maximale Kanalverarbeitungszeit liegt unter 250 ms. Aus Sicherheitsgründen wurden Funktionen wie MAC Address Spoofing, Broadcast Storm Prevention, MAC Count Limiting und Paketfilterung integriert. Mit diesen Funktionen können Telekommunikationsanbieter Triple-Play-Dienste wie High-Speed Internetzugang, VoIP, Near-Video-on-Demand, Broadcast TV und TV-on-Demand einfach bereitstellen.

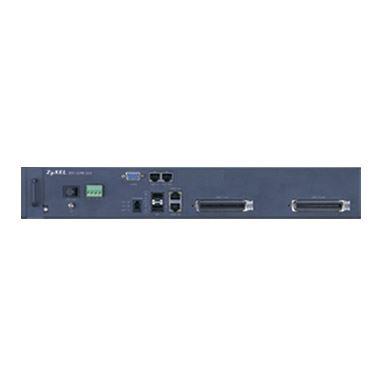

Bilder
Technische Daten

Network Interface

  • IEEE 802.3u 100BASE-Tx

  • IEEE 802.3ab 1000BASE-T

  • IEEE 802.3z 1000BASE-ZX/LHX/LX/SX

  • SFP mini GBIC

ADSL/ADSL2/ADSL2+ Interface

  • G.992.1 Annex A

  • G.992.3 Annex A, Annex L, Annex M

  • G.992.5 Annex A, Annex M

  • G.994.1 G.hs

  • G.992.3, G.992.5, G.997.1 Spectral Mask

  • G.992.3 and G. 992.5 ATM Transmission Convergence (ATM-TC) function

  • EOC defined in ITU-T G.992.3 and ITU-T G.997.1

  • Latency path function specified in ITU-T G.992.3 and G.992.5

  • Loop diagnostic function (SELT & DELT) specified in ITUT G.992.3 and G.992.5

  • Power management capability specified in ITU-T G.992.3 and G.992.5

  • Seamless Rate Adaptation (SRA) on-line configuration

  • Impulse Noise protection (INP) specified in ITU-T G.992.3 and G.992.5

ATM Functionality

  • 8 VPC/VCC per DSL port

  • UBR, CBR, rt-VBR, nrt-VBR, ABR QoS Mechanisms

  • ATM Forum TM 4.0 peak cell rate traffic parameter

  • Downstream traffic shaping per ATM PVC

  • ATM F5 OAM cells for End-to-End Loop back test (ITU-T Rec. I.610)

  • G.998.1 multi-pair ATM bonding (*)

  • Support 64k PVC

L2 Bridging

  • 802.1d and 802.w RSTP

  • Max MAC address per system : 14K

  • Max MAC address per port : 128

  • Auto MAC address learning

  • Block duplicate MAC address (MAC address spoofing)

  • Configurable MAC aging-out time

  • Limiting number of MACs per port

  • Static MAC address filtering

  • User Isolation (per system)

VLAN & VLAN Bridge Functions

  • Provide 1024 configurable VLANs with 4K VLAN tagging

  • The VLAN tagging complies with IEEE 802.1Q

  • GVRP function

  • 128 VLAN +MAC per DSL port

  • VLAN bridge function (multiple PVCs to one VLAN)

  • VLAN cross connect (PVC to VLAN one to one mapping)

  • VLAN trunking (single PVC join multiple VLAN)

  • IEEE 802.1ad provider bridge (Q-in-Q)

QoS

  • Configurable IEEE 802.1p priority queue function and support 4 levels

  • Configurable mapping function between ATM PVC and 802.1p priority queue

  • TOS/DSCP to IEEE 802.1p p-bit mapping in the network interface

  • Upstream rate limiting by ACL in the DSL port

  • Strict Priority queuing in the network interface

IP Functionality

  • RFC2684 bridged mode multicast service

  • RFC2684 routing mote support

  • ICMP function support

  • PPPoA forwarding

  • DHCP relay agent option 82 (circuit ID and Remote ID)

  • DHCP snooping

  • IEEE 802.1x

  • IPSec/L2TP/PPTP VPN pass-through function

  • RFC2516 PPPoE packet forwarding function

Packet Filtering

  • Discard downstream broadcast

  • Control downstream broadcast

  • Source MAC address filtering (pass or deny)

  • PPPoE filtering

  • Layer 3 filtering based on IP header : Src addresses, dest addresses, protocol ID, UDP / TCP port number

  • ARP broadcast Filtering

  • Downstream broadcast enable/disable ( per-VLAN, per-port)

  • NetBIOS filtering

  • DHCP broadcast filtering

  • IGMP filtering

  • Block BPDU/ARP/LACP/GMRP/upstream pause frame on DSL side

Multicast Capability

  • Internet Group Management Protocol (IGMP) version 2 specified in RFC2236

  • VLAN-aware IGMP snooping/IGMP proxy

  • Multicast VLAN support

  • 512 multicast groups

  • 50 copies for each multicast group

  • Number of zap per second per system : >30

  • Expedite leave : < 250 ms

  • Multicast bandwidth control

  • IGMP membership report

  • Static multicast forwarding

  • Multicast address filtering profile

  • Load protection for IGMP

VoIP Services

  • SIP v2 singling protocol and H.248 version 2(*)

  • Voice CODEC : G.711 a/µ, G.726, G.729 a/b G.723.1

  • Configurable jitter buffer

  • Generation of dial tone, second dial tone, ringing tone (ring-back tone), busy tone, off-hook warning tone

  • DTMF detection and generation (bi-directional)

  • In-Band and Out-of-Band (RFC 2833), (SIP INFO)

  • FAX/Modem pass through (T.38) via RTP

  • call waiting, call hold, call transfer

  • Local dial available(*)

  • MLT (Metallic loop testing for subscriber lines) ??GR909 and GR844

Management

  • Local management through a craft terminal

  • In-band IP interface for managing the Network

  • SNMP (Simple Network Management Protocol) v1.0 & v2c (RFC1157)

  • The management activities can be performed by SNMP operations

  • Support SNMP MIB(s)

  • standard SNMP traps so that these traps can be reported to other NMSs

  • Centralized Management Software ??NetAtlas Access supporting

MIB Support

  • RFC1213 SNMP MIB II

  • RFC1493 Bridge MIB

  • RFC1643 Ethernet MIB

  • RFC2674 Q MIB

  • RFC2662 ADSL line MIB

  • ADSLx line MIB

  • RFC1757 RMON MIB, group 1,2,3,9

  • ZyXEL proprietary MIB

Hardware Specifications

  • Two TELCO-50 connectors for 48-port ADSL/ADSL2/ADSL2+

  • One mini RJ11 console port for local management

  • Two 100Base-TX/1000Base-T or two mini GBIC for uplink/subtending

  • One DB9 for 3 in and 1 out alarm contact

  • Hot-swappable fan module

  • DC Input connector

  • One power switch

  • Two RJ-45 ports for loop test out and test in functionality

Power Requirements

  • Voltage: DC power input (-36V DC ~ -72VDC)

  • Power consumption : max. 170 Watts

Physical Specifications

  • 19??and 23??Rack-mountable

  • Dimensions: 439.8 (W) x 251 (D) x 66 (H) mm

  • Swappable FAN module

  • Built-in splitter

  • Side-slip dust filter

  • Weight: 8.2 Kg

Environmental Specifications

  • Operating Temperature: -40°C ~ 65°C

  • Storage Temperature: -40°C ~ 70°C

  • Operating Humidity: 10% ~ 95% (noncondensing)

  • Storage Humidity: 5% ~ 95% (non-condensing)

Certification

  • EMC/ESD:

  • FCC part 15 Class A; -EN 55022, EN 55024 Class A; ETS 300 386

  • Safety:

  • ITU-T K.20, Appendix C; -CSA 60950; -EN 60950; IEC 60950; UL 60950

  • Reliability: ETS 300 019

  • NEBS Compliant (*)

(*) Firmware upgradeable for future enhancement
